| Sample Volume | 2-4 mL EDTA whole blood, works with primary EDTA blood tube |
| Sample Loading | 10 samples in random access/batch/continuous loading |
| Measuring Method | Infrared light beam |
| Measuring Time | 22 minutes |
| Results Resolution | +/- 1mm |
| Results Pre-Indication | Abnormal sample flagging in 15 minutes |
| Device Internal QC | A QC stick with pre-determined Height (mm) is provided |
| Display | Larger 40 x 4 LCD display |
| Keypad | Supports 0-9 numerical and A-Z alphabets |
| Interface | Two RS-232 pins for thermal printer and barcode reader.
One USB port for Uni-directional LIS connectivity |
| Operating condition | 18 ºC – 45 ºC |
| Patient ID | Supports 16 digits alphanumeric patient ID |
| Customizable Print | Hospital/lab name integration |
| Memory | 30 days results storage with upto 10000 samples results |
| Power Supply | 100-240 VAC, 50/60hz | 5 V DC 2.5 A (External adapter) |
| Dimension | H 200mm x W 25mm x D 180mm |
| Weight | 2.5 Kg |
Pushing Boundaries in ESR Testing
Saving Time. Maximizing Efficiency.

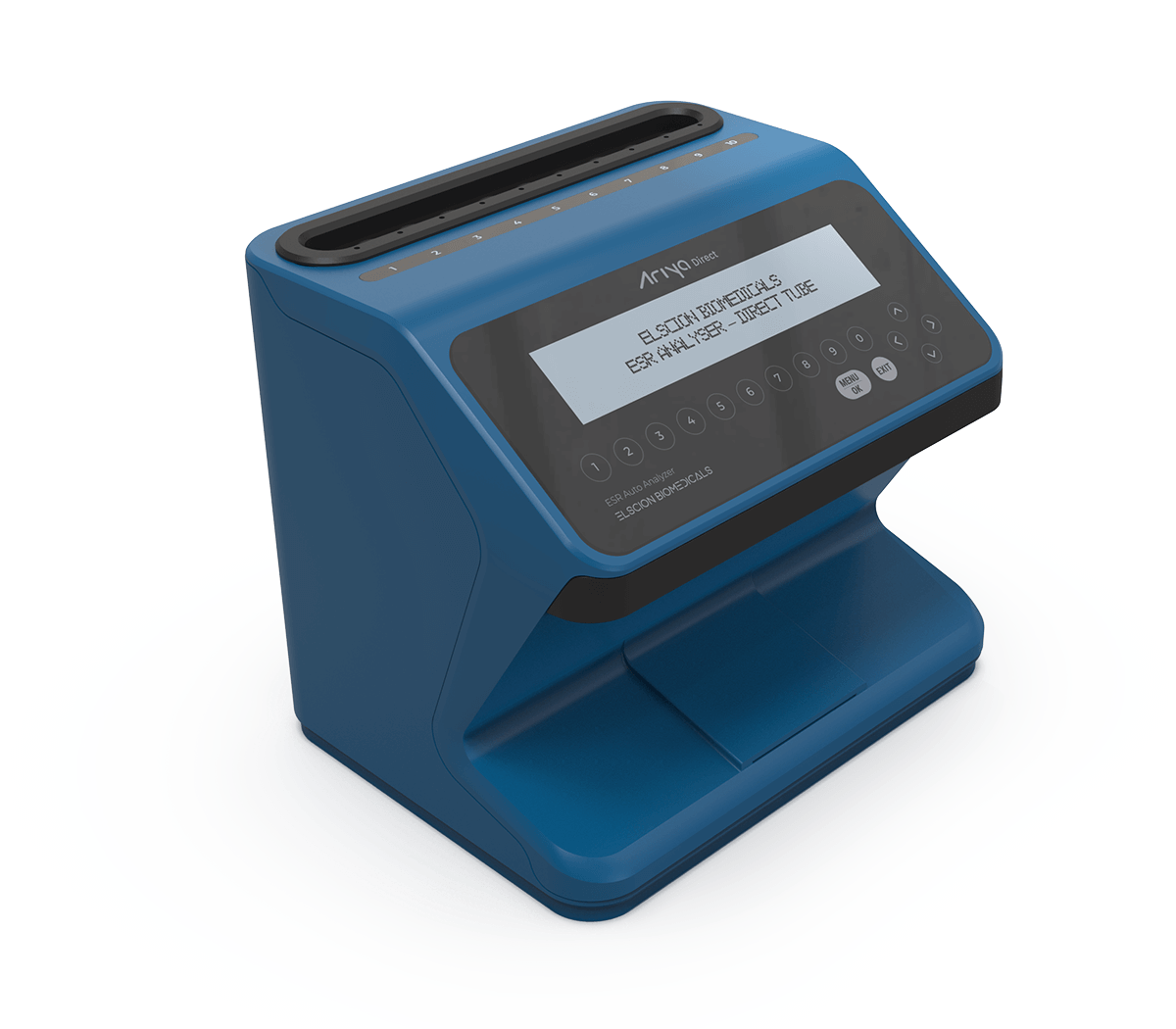

Experience the Future of ESR Testing with Our Direct Tube Ariya Direct 10 Analyzer: No dedicated tubes needed, quick results in just 22 minutes. Go green and stay safe with our eco-friendly and waste-free diagnostics. Upgrade to our direct tube ESR analyzer and revolutionize your diagnostic experience today!

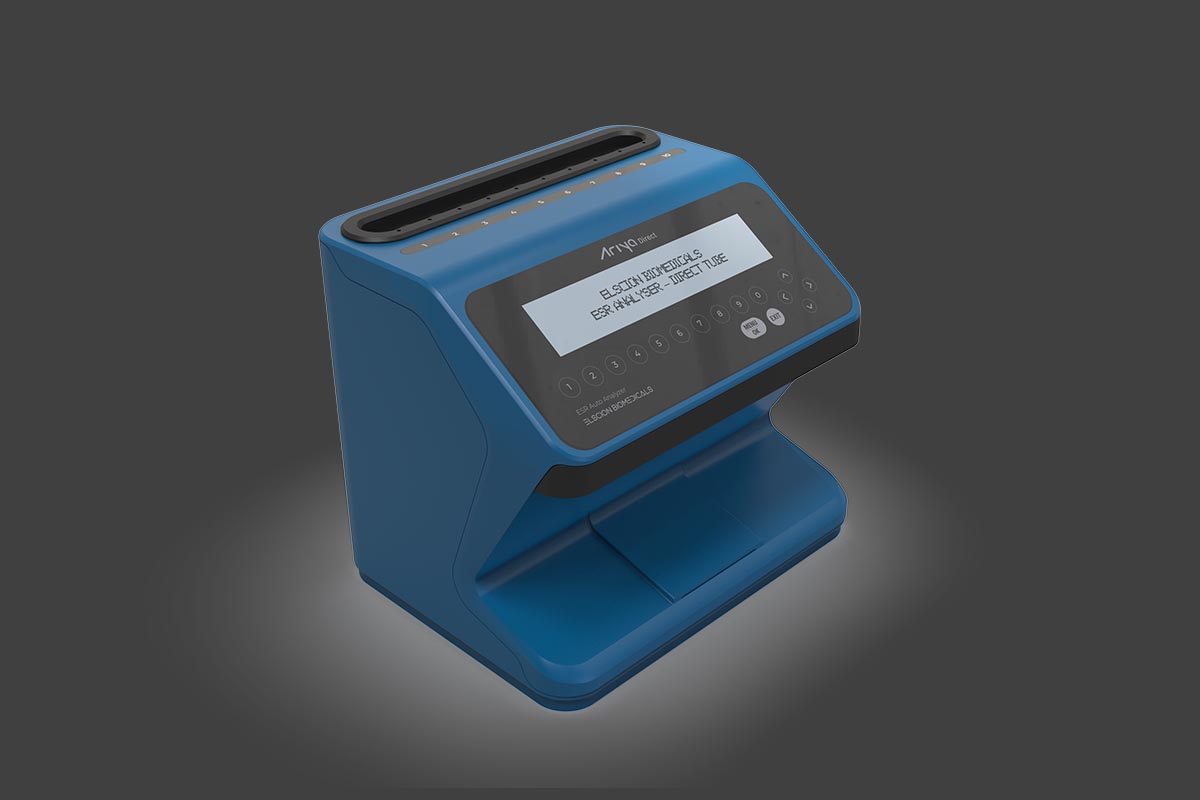

Promo Video

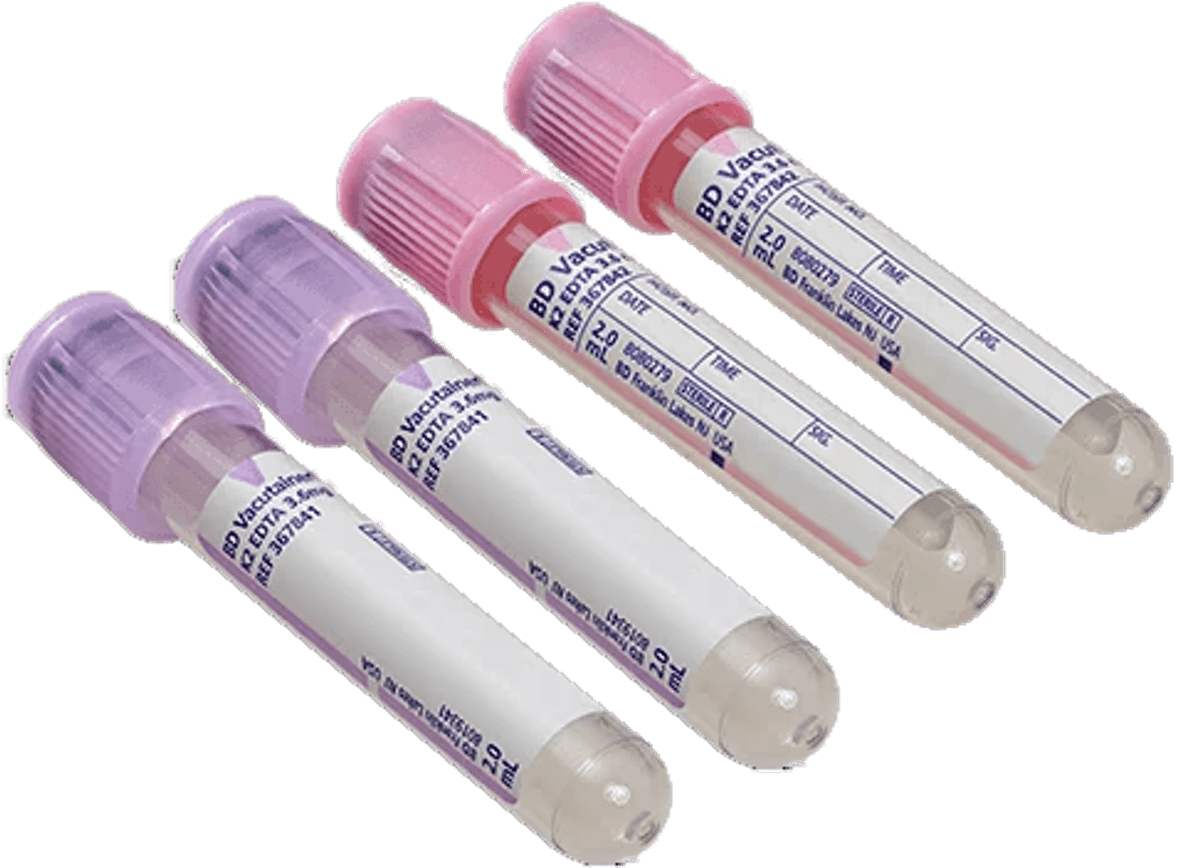

Any brand, any make EDTA tubes
No need to worry about specific brands or make! Ariya direct 10 is compatible with all EDTA tubes, giving you the flexibility to use any make or brand.
No need for dedicated citrate tubes
No dedicated ESR tubes are needed to run ESR test
Innovation in Algorithm
Ariya Direct 10 is validated with large samples, empowering it to provide highly precise predictions of Westergren correlated ESR values.

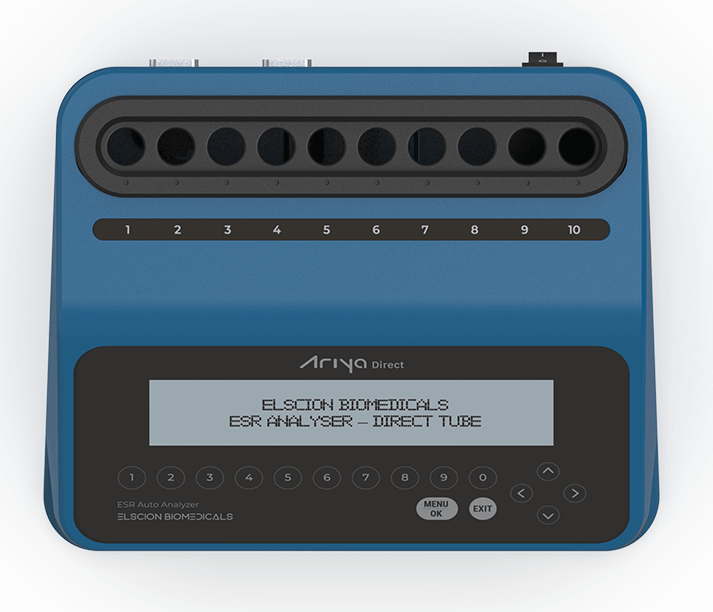

Random & Continuous Loading
Uninterrupted Efficiency in ESR Testing with Non-Batch, Random, and Continuous Loading of Tubes.
Results in 20 minutes.
Unlock the power of Rapid ESR testing for Efficient Decision-Making!

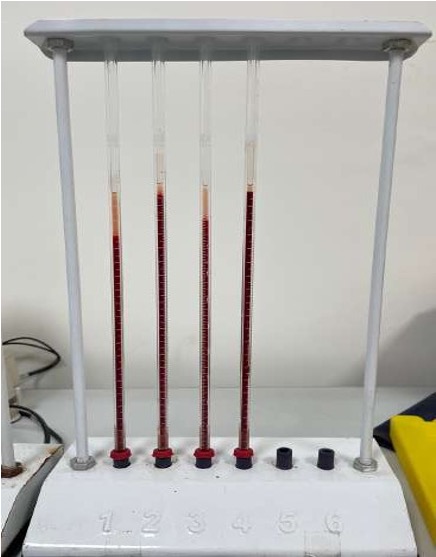

Excellent correlation with Westergren
Excellent correlation with Gold Standard “modified Westergren method”
Safe & Environmentally Friendly
No biohazardous / liquid waste, no worries – keeping the environment clean and your safety!

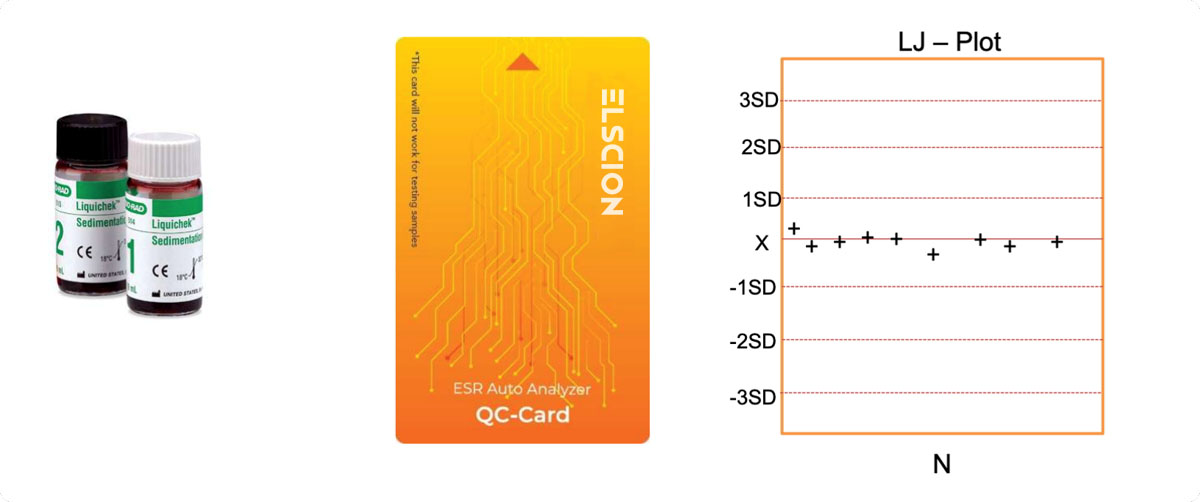

External Quality Control
Supports external quality controls with LJ-plot

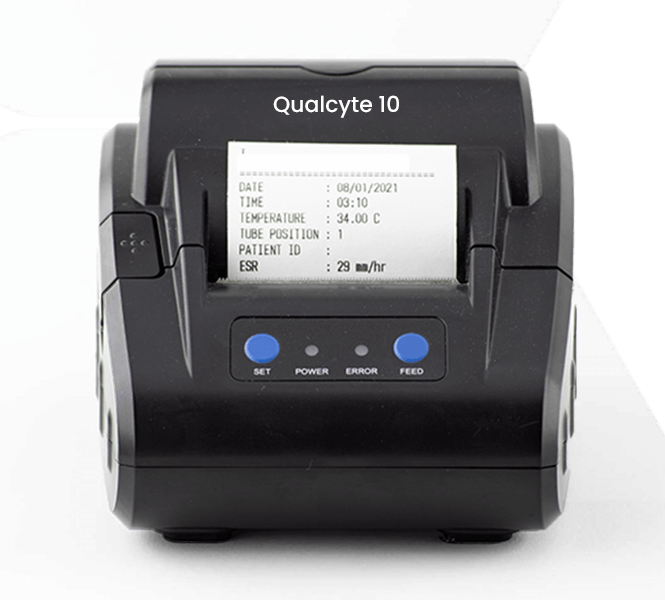

External Printer
Allows for display printout of test results using the RS232 port interface

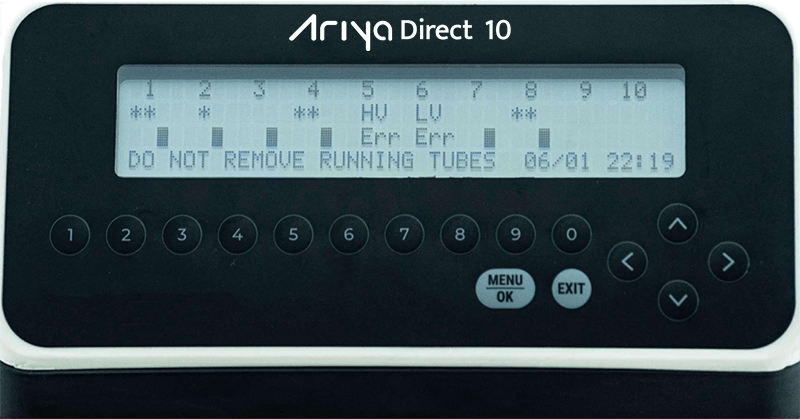

Abnormal sample indicator
- * 15-40 mm/h; ** >40 mm/h
- Low volume/High volume Error

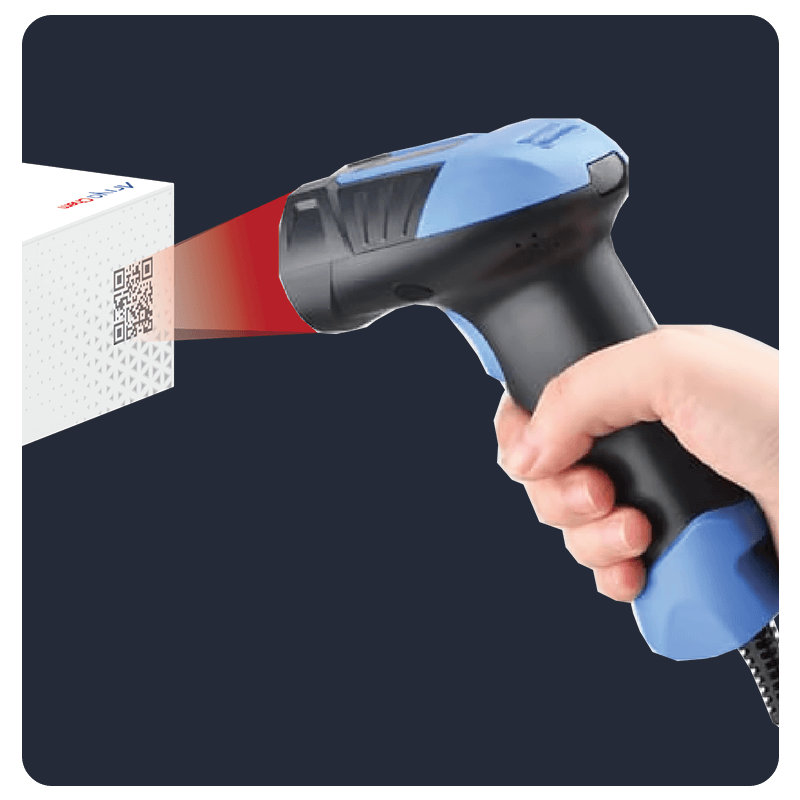

Patient Barcode Scanning
Easy scanning of Patient ID using barcode scanner
Smart card enabled test recharge
Recharge Options
- 100 tests
- 250 tests
- 500 tests
