Pushing Boundaries in Diagnostic Technology
Seamless Workflow. Unmatched Precision.

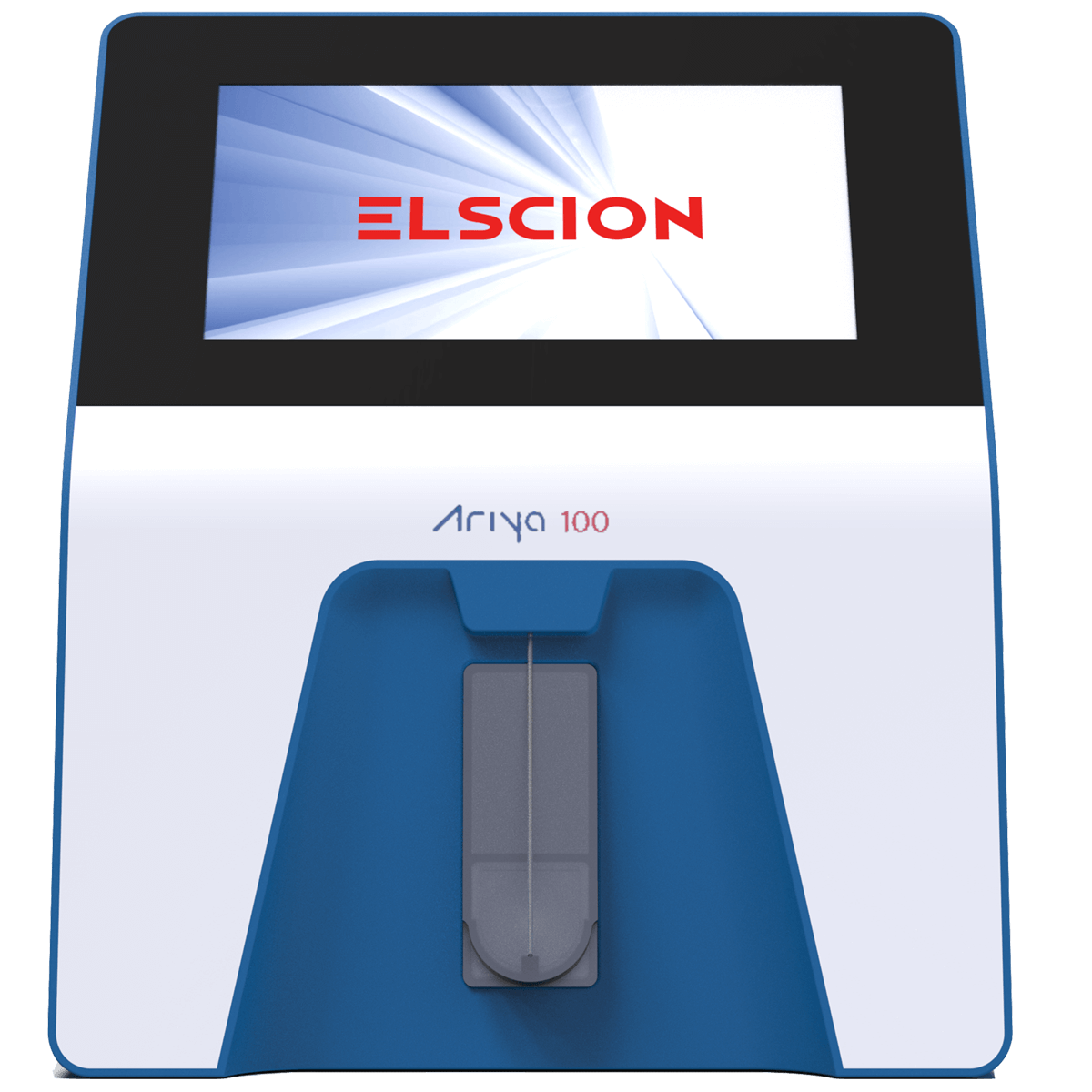

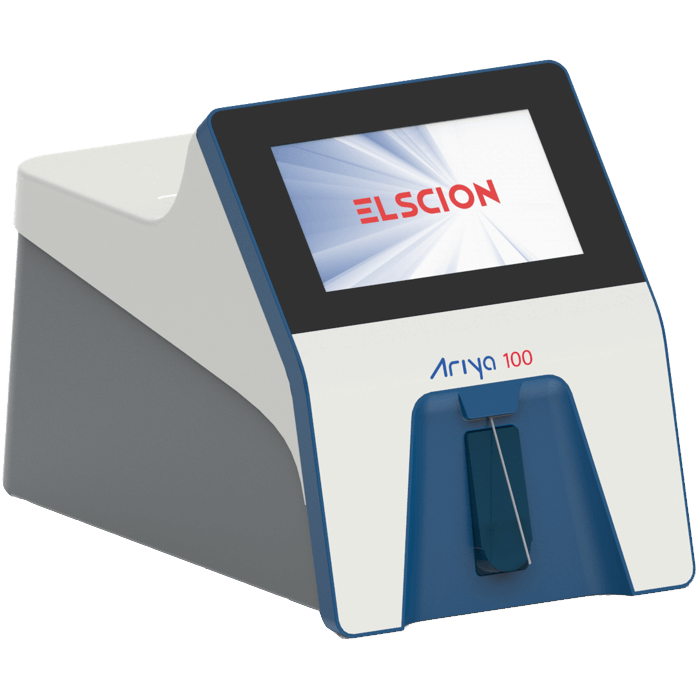

The new Ariya 100 semi-automatic clinical chemistry analyzer offers unique features including scanning reagent pack for setting up test and an advanced autowash function to minimize carryover, this analyzer is one of a kind that streamlines testing and offer reliable tool for accuracy and performance.

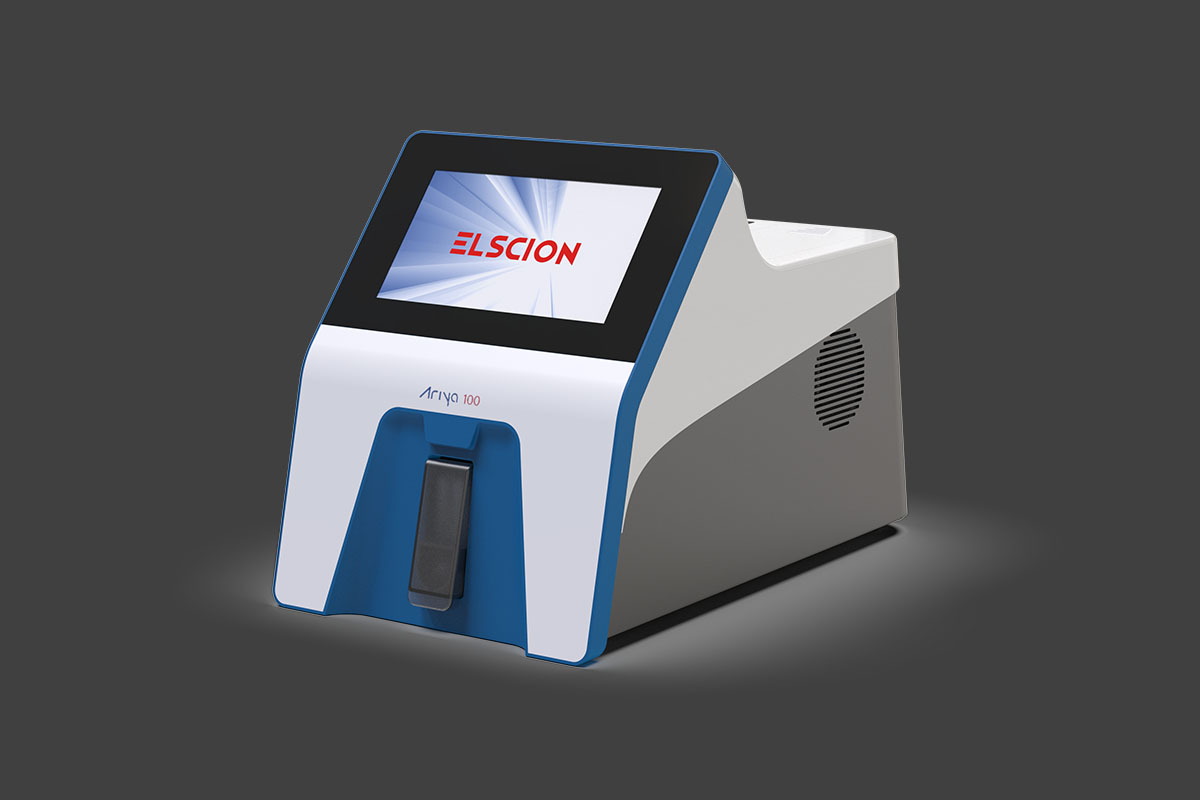

Promo Video

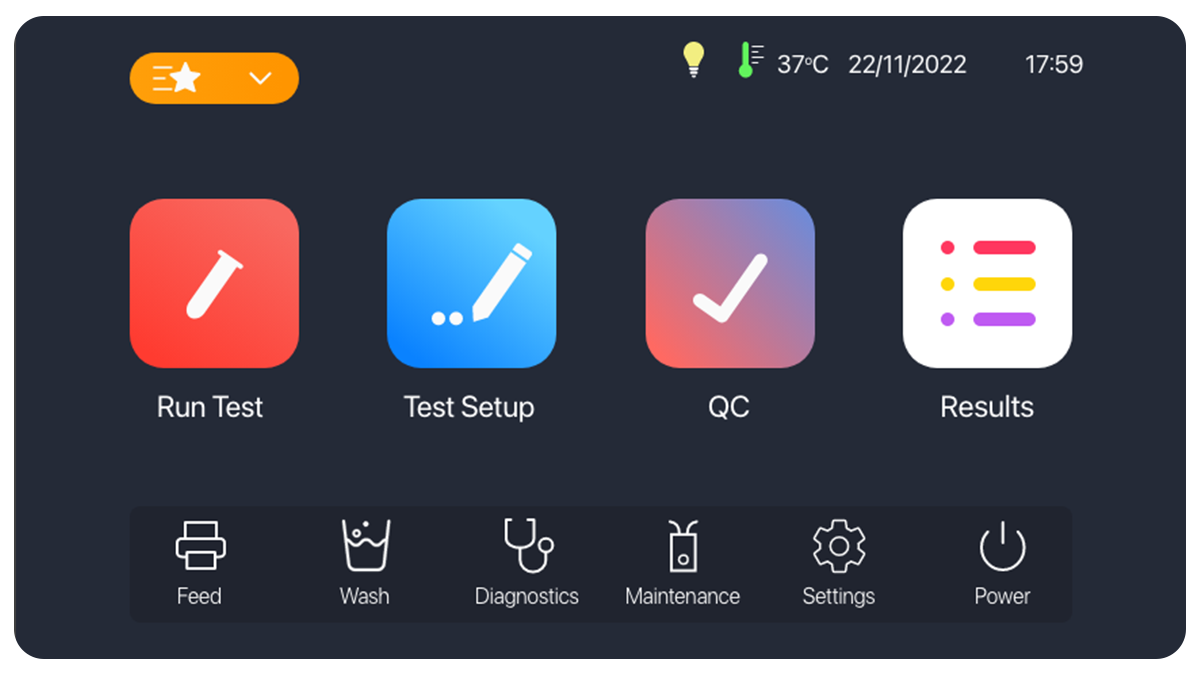

Modern aesthetic and Intuitive user interface
With 7-inch touch display, the intuitive user interface is inspired from a smartphone that makes operating the analyzer a breeze.
Carryover-free flow cell*
Only semi-auto analyzer in the world equipped with an exclusive auto wash feature.
* On select model

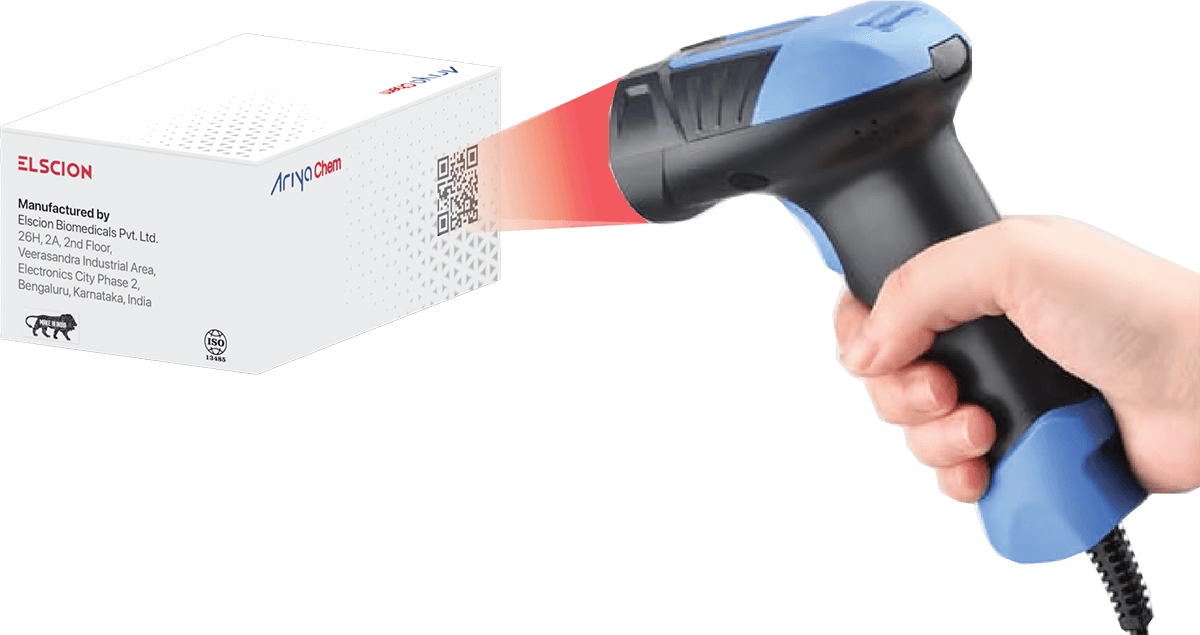

Easy loading of test setup
With the ability to effortlessly scan the barcode on the reagent pack, Ariya 100 automatically loads the corresponding test parameters, streamlining the entire testing process
Unlock unparalleled efficiency with Favorite Tests.
Enables faster access to frequently performed 20 tests without navigating complex menu options.
Visually empowering logos
Whether it’s end Point, kinetics, or Fixed time, our intuitively designed logos provide instant visual recognition, making it effortless to select the method with a single glance.
State-of-the-art optics design
The Ariya 100 is equipped with high precision filters boasting extended lifespan, optimized for accuracy and reliability in Biochemistry and Turbidimetric assays.

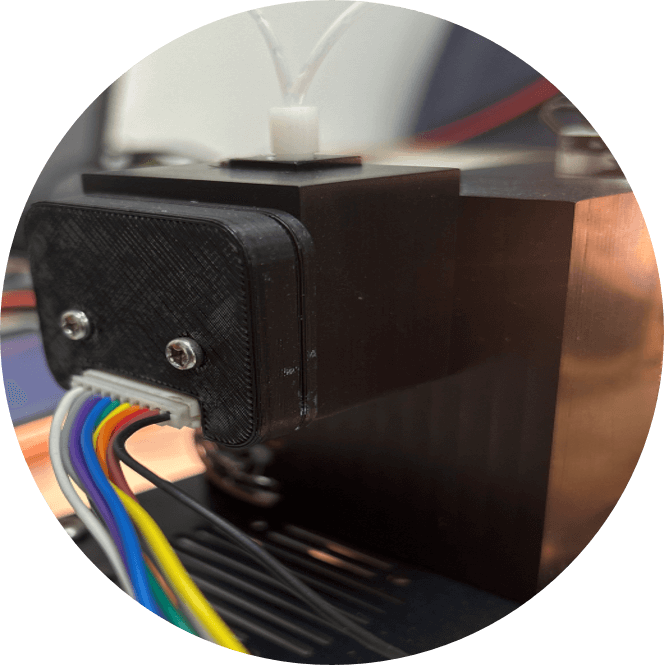

Dust-free optical module
Featuring a completely sealed optical module, this ensures a dust-free environment and guarantees the longevity of your filters.

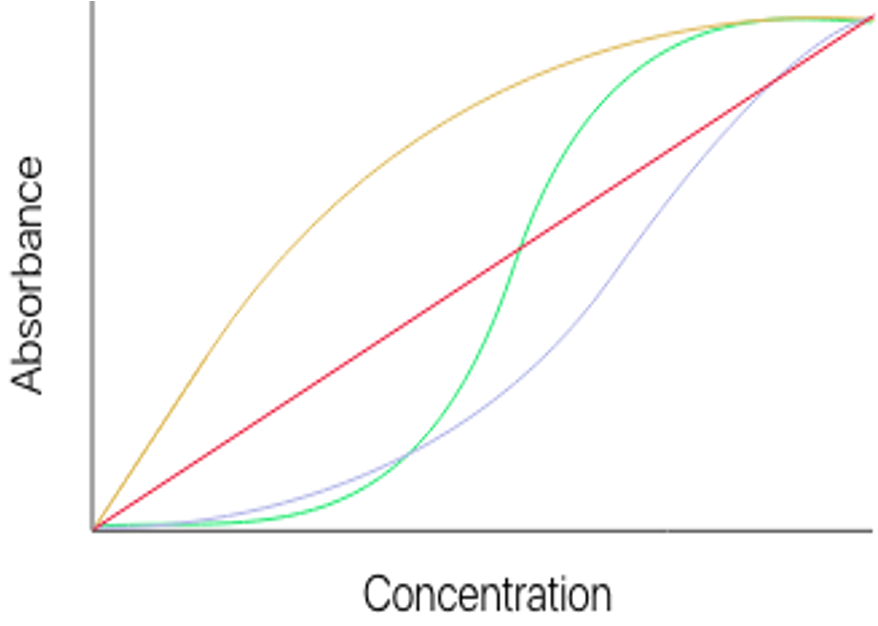

Comprehensive range of calibration options
Offering a comprehensive range of calibration options, including Linear Regression, Cubic Spline, Point-to-Point, Factor, and 4PL.
Trust your results

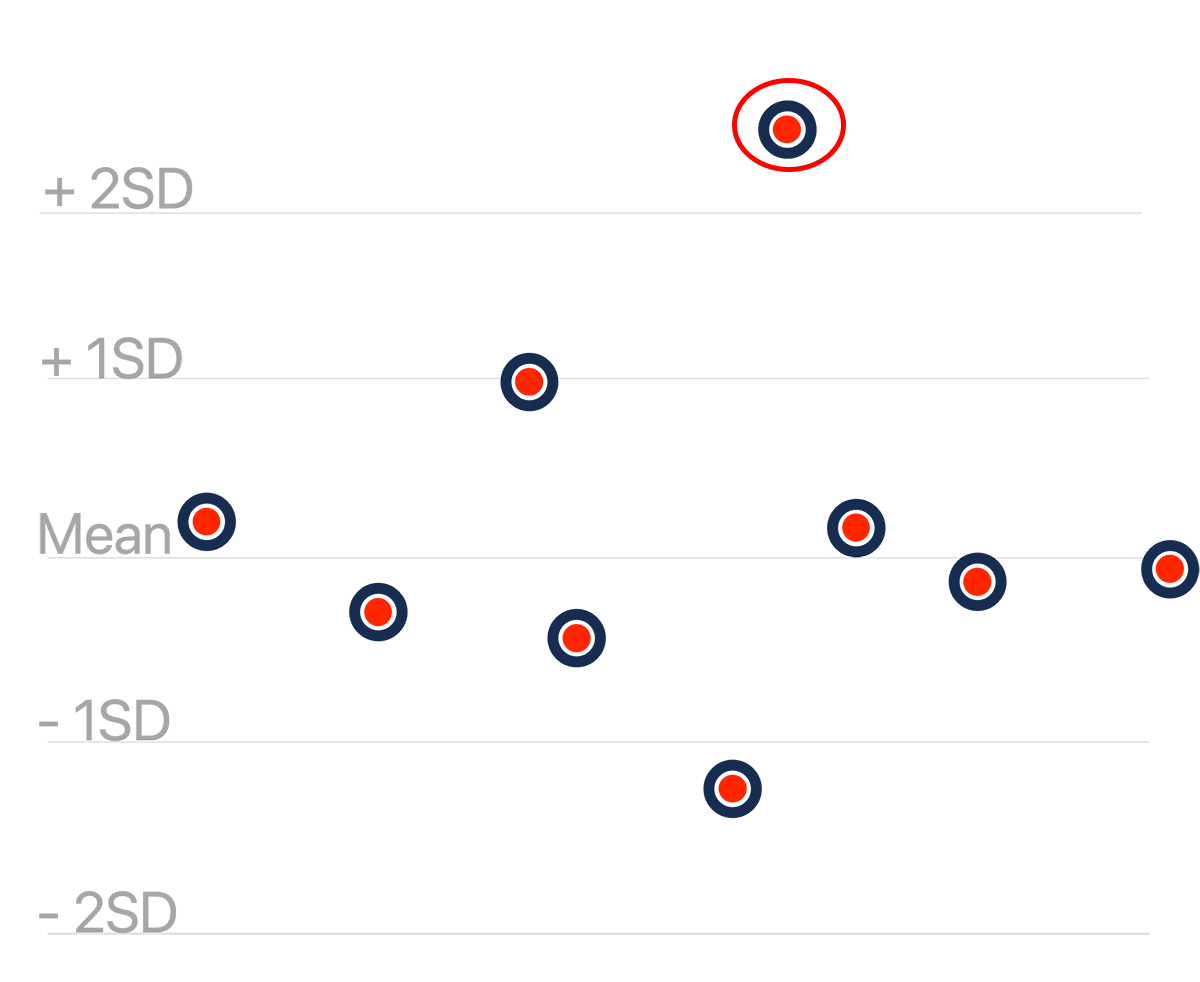

Take proactive measures for superior quality control with LJ plots and Westgard rules.
Comparison
The most affordable Semi Auto that performs with exceptional Precision & Accuracy
7-inch touch display
6 Filters + 2 Optional
32uL flow cell

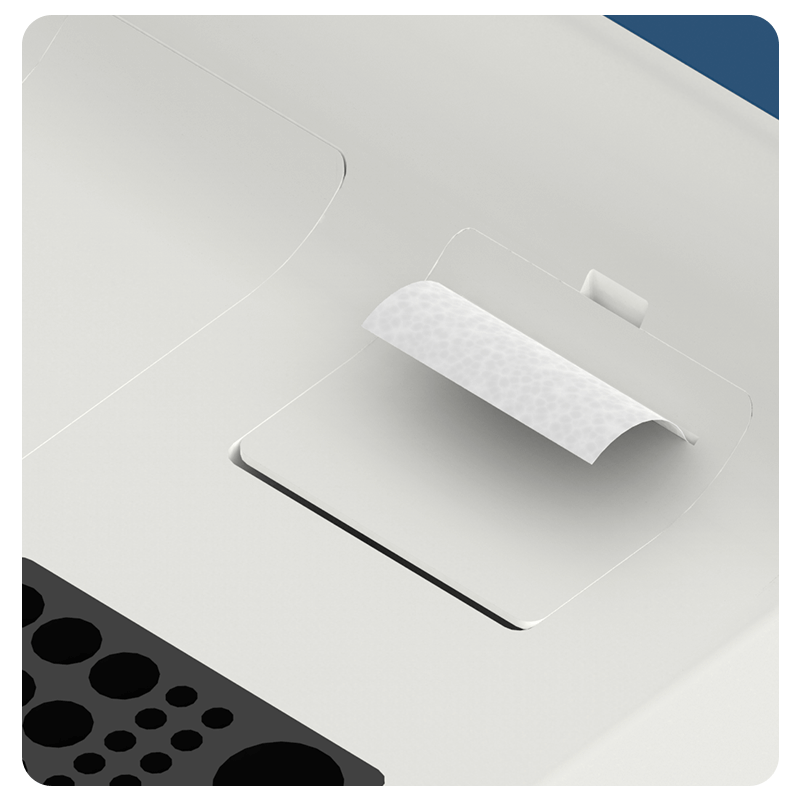

In-Built Printer
Barcode Test Setup
LIS Interface

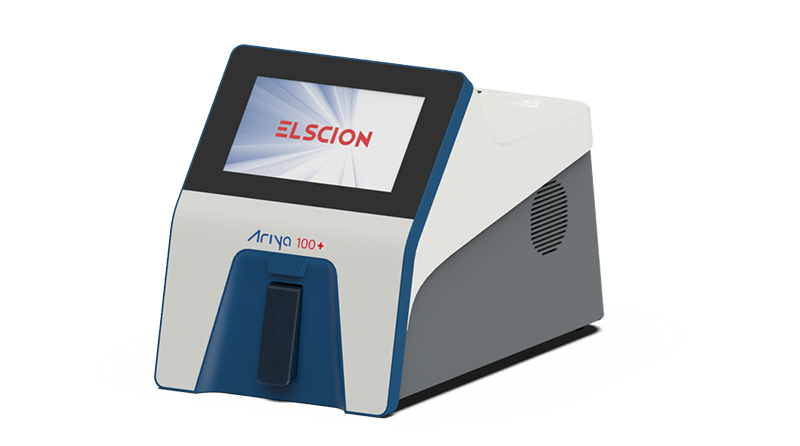

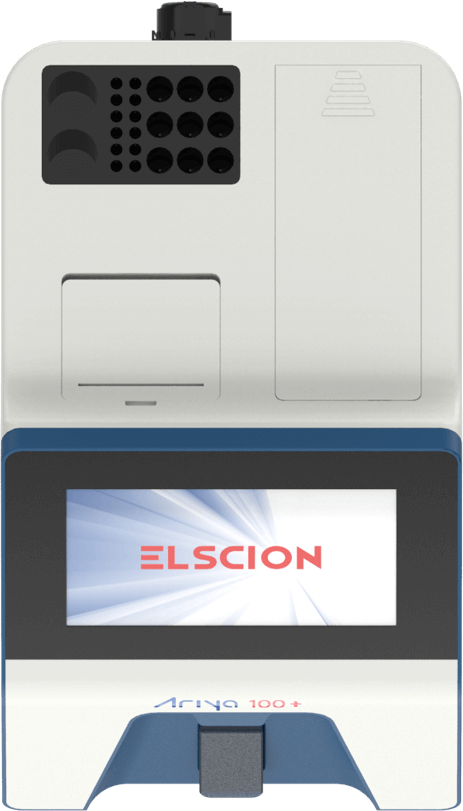

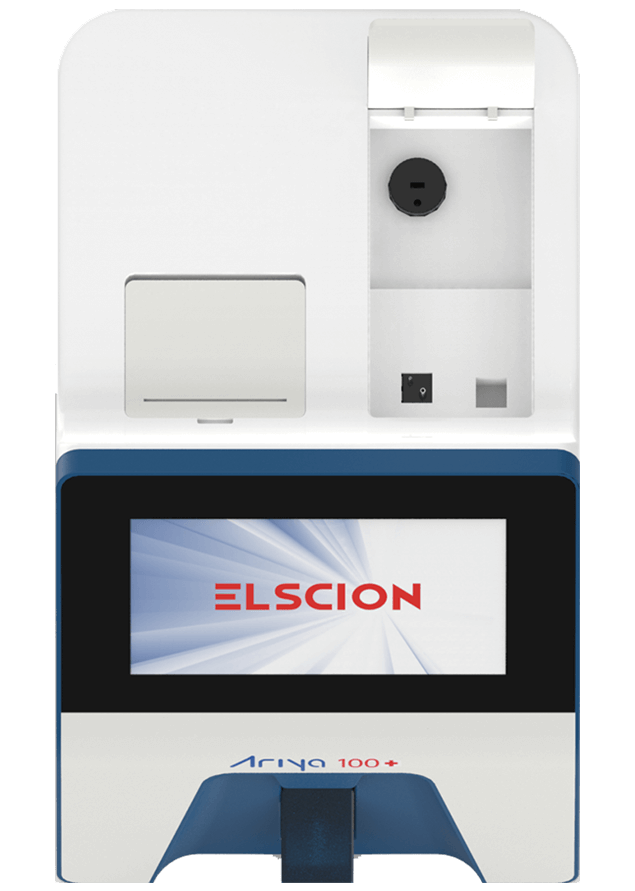

With our plus model, unleash the power of autowash technology, inbuilt incubator, and Coagulation analysis all in one.
7-inch touch display
6 Filters + 2 Optional
32uL flow cell & Coagulation tube adaptor
In-Built Printer
Barcode Test Setup
LIS Interface
In Built Incubator
Autowash Technology
Coagulation
Technical Specifications
| Photometric range | -0.2 to 3.0 A |
| Wavelengths | 6 Standard filters: 340, 405, 505, 546, 578, 630 nm, 2 optional |
| Bandwidth | ± 5 nm |
| Light source | Halogen lamp 12V/20W, 2000 hours long-life, Auto-sleep function |
| Lamp replacement | The customer can easily replace it without the need for a service engineer. |
| Digital resolution | 0.0001 A |
| Optical Measurement | Photodiode |
| Settings | Monochromatic and Bi-Chromatic |
| Flow cell | Special optical glass |
| Volume | 32 ml, 10 mm |
| Reaction volume | 300 ml |
| Carryover | < 1 % |
| Sample vessels | Flow cell, 10 mm cuvette and 6 mm tube |
| Sample type | Serum, plasma, and urine |
| Sipper aspiration volume | 300 – 5000 ml |
| Peristaltic pump | Continuous flow system |
| Flow rate | 10 mL / min |
| Sipper indicator | Aspiration indicator light |
| Purge | Air purge between samples to avoid carry over |
| *Autowash | Automatic washing of flow cell after each test type for avoiding carry over |
| *Liquid detection | Wash bottle level indicator |
| Waste and *wash bottles | 1L (included) |
| Flow cell | Peltier system for RT, 25 °C, 30 °C, and 37 °C |

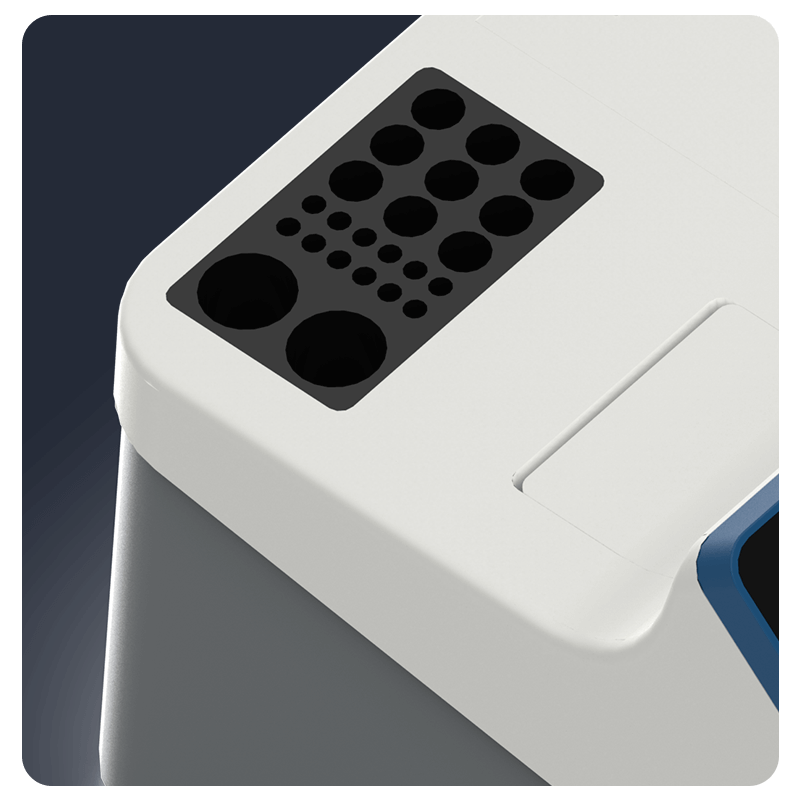

| *Incubator | 37 °C, 10 position dry block incubator |
| Accuracy of temperature | ± 0.1 °C |
- Absorbance
- Endpoint
- Kinetics
- Fixed time
- Differential
- Turbidimetry
- *Coagulation
- With or without reagent blank for all methods
- Sample blank options
Factor
- Automatic 1-point standard
- Automatic 2-point standard
- Automatic linear regression up to 6 standards
- Automatic point-to-point up to 6 standards
- Automatic multi-calibration up to 6 standards (4PLL, non-linear regression such as Spline)
| QC level | Daily and monthly QC for multi-level QC per test |
| Data analysis | QC survey of last 30 control measurements |
| Plot options | Levey Jennings control plot |
| Error detection | High/Low flags |
| Programming using reagent barcode | Programming test using QR code scanning from the reagent pack Multi-calibration performed without running standards |
| User programs | 200 |
| Storage | 5000 patient results storage, 30 result/QC level, Calibration history |
- 7-inch true color capacitive touch LCD display (800 * 480 pixels)
- Large font keypad – easy operation with gloved hands
| Display | Touch screen with pop-up keypad |

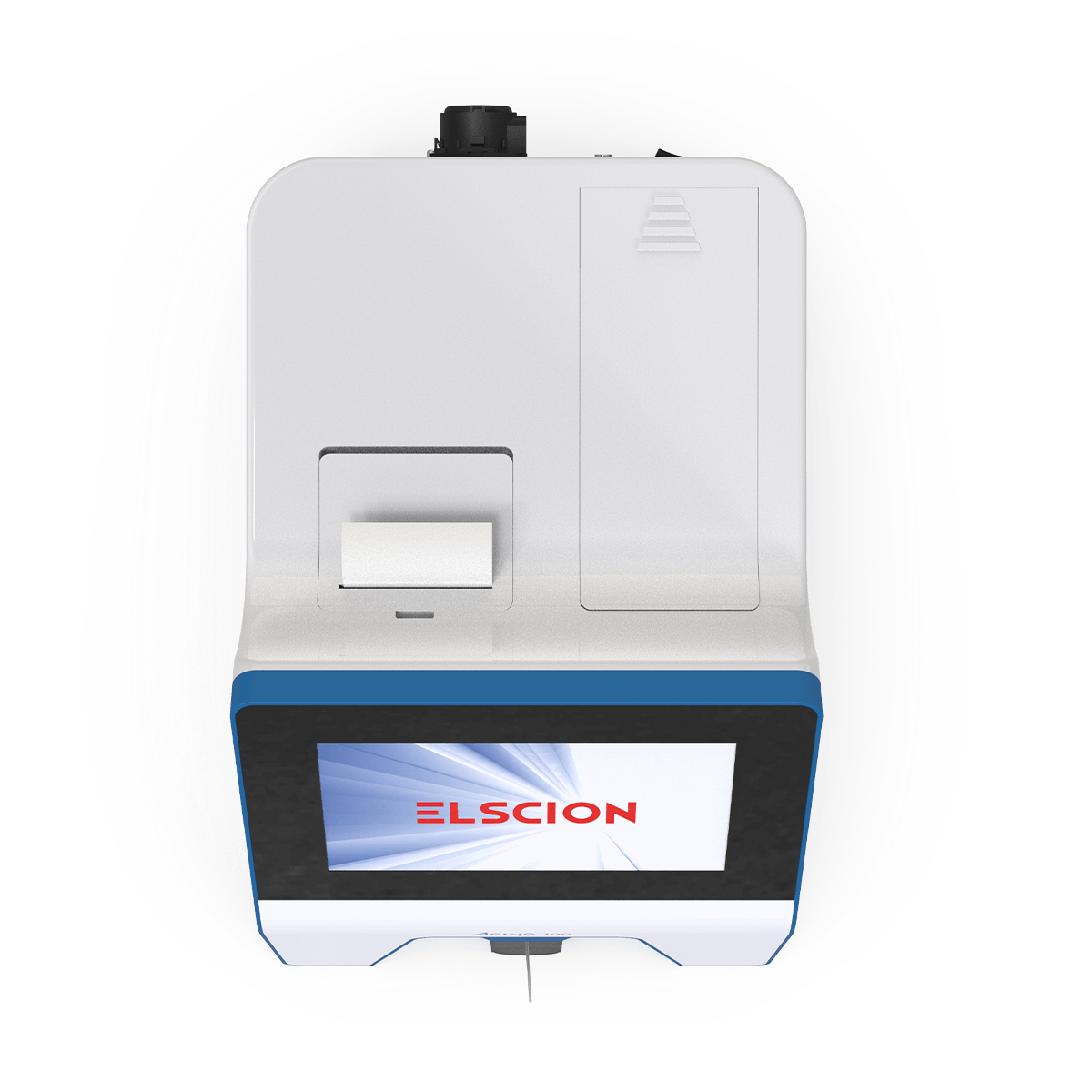

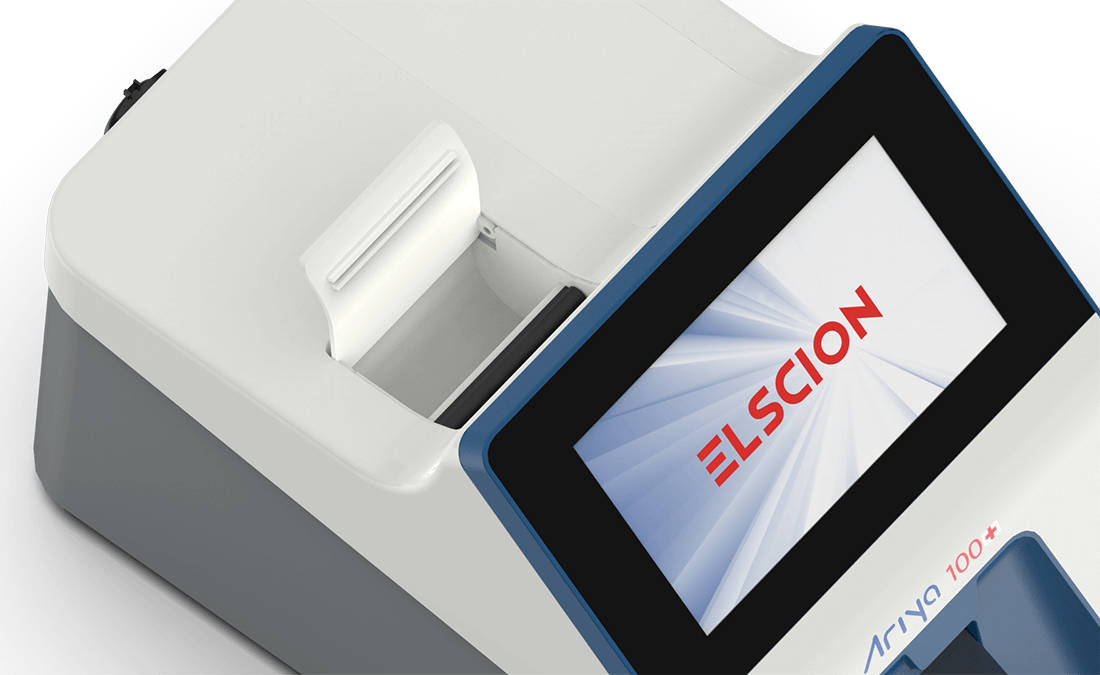

| Printer | Inbuilt high resolution 58 mm graphic thermal printer |
| Barcode reader | 1 USB-type B for QR & barcode scanner |
| LIS system | 1 RS-232 serial port for bi-directional interface |
| Display | Real time display of reaction curve |
| Temperature | Real time display of Flow cell/incubator temperature |
| Labeling | Alpha numeric patient ID and name |
| Aspirate | Aspirate button in LCD test screen |
| Method symbol | Unique symbol for methods/modes for easy identification on test screen |
| Users | Login option for multiple users |
| Timer | Software-enabled timer for incubation |
| Favorites | Access to favorite screen for routinely run tests |
| Calibration | Calibration trace option
Option to edit multi-point calibration graph absorbance |
| Lamp replacement indicator | Recommends lamp replacement with lamp life info. |
| Maintenance | Automatic maintenance reminder
Half-day and end of the day maintenance option |
| Security | Lock for third party reagent programming (Service password)
Auto lock for differed payment customer (90 days) |
| Results | Results recall per date, user, method, test, flags, patient ID |
| Print out with laboratory and doctor’s name |

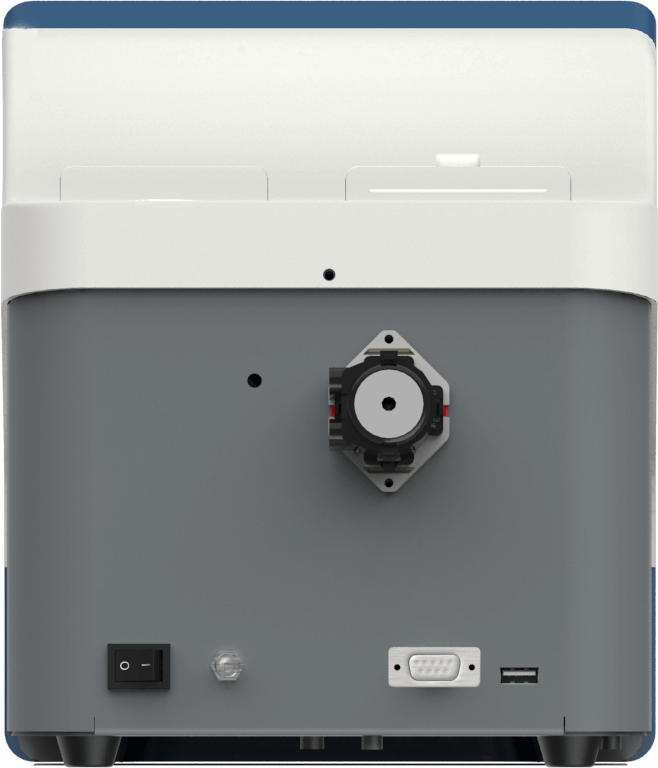

| Voltage | 110- 240 V |
| Frequency | 50/60 Hz |
| Output power | 100 W |
| Output voltage | 19 V |
| Operating temperature | 10-40 °C |
| Max rel. humidity | 85 % |
| Instrument dimensions | 30 cm x 25 cm x 17.5 cm |
| Instrument weight | 6.5 Kg (approx.) |
* Represents features in Ariya 100+
